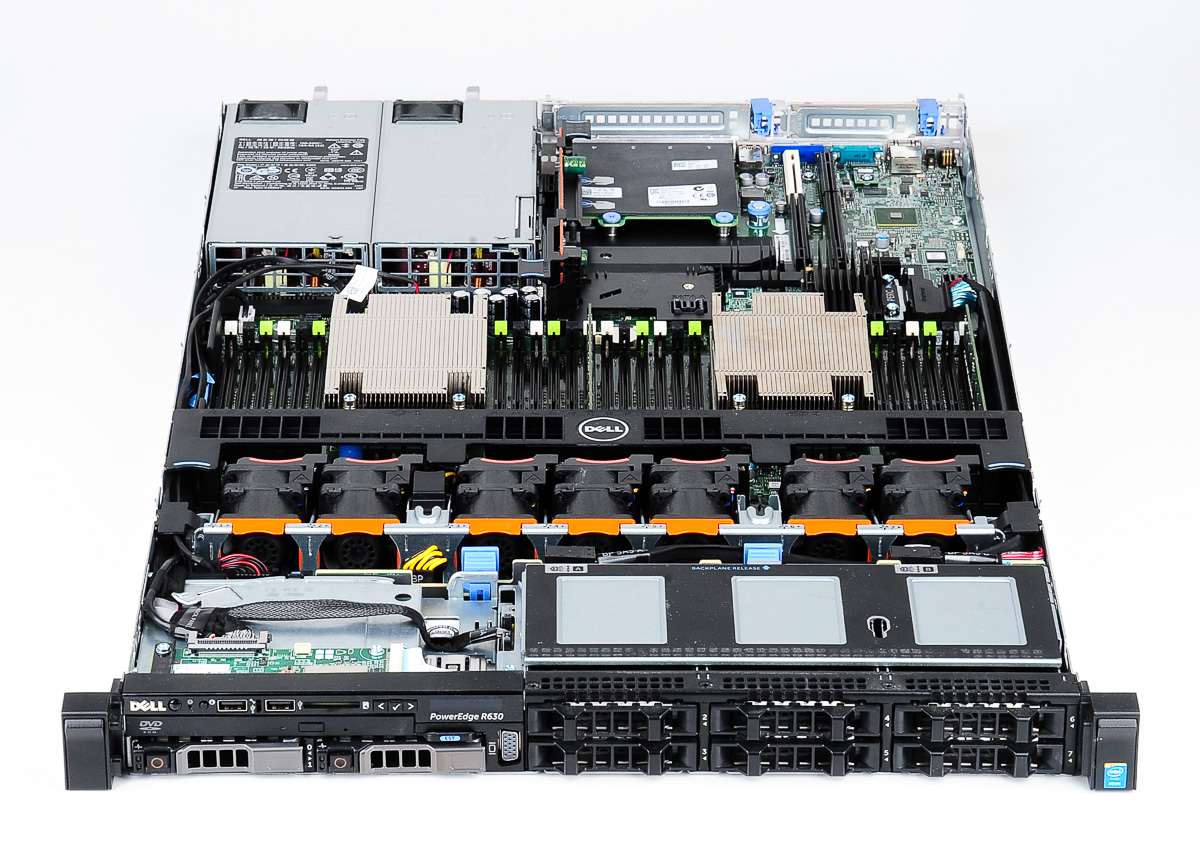

🖥 Dell PowerEdge R630 – Product Overview

The Dell PowerEdge R630 is a 1U rack-mounted enterprise server designed for high-performance computing, virtualization, databases, and network services. It delivers an excellent balance of compute density, memory capacity, and storage flexibility, making it a popular choice for data centers, ISPs, and cloud service providers.

⚙️ Key Specifications

🔹 Form Factor

• 1U rack server
• Optimized for high-density data center deployments

🔹 Processor (CPU)

• Supports up to 2× Intel Xeon E5-2600 v3 / v4 series
• Multi-core processors ideal for virtualization and parallel workloads

🔹 Memory (RAM)

• 24 DIMM slots
• Supports DDR4 ECC Registered (RDIMM) / Load Reduced (LRDIMM)
• Maximum capacity:
• Up to 768 GB DDR4 (with LRDIMM)
• High memory bandwidth for VM-heavy environments

🔹 Storage Options

• Flexible drive configurations:
• Up to 10× 2.5″ SAS/SATA drives
• Options for SSD support
• RAID controller options:
• PERC H330 / H730 / H730P
• Supports RAID 0, 1, 5, 6, 10, 50, 60 (controller dependent)

🚀 Performance & Features

🔸 High Compute Density

• Dual-socket architecture in a compact 1U form
• Ideal for compute-intensive workloads

🔸 Virtualization Ready

• Optimized for:
• VMware ESXi
• Microsoft Hyper-V
• KVM and other hypervisors
• Large memory footprint supports high VM density

🔸 Networking

• Integrated 1GbE / 10GbE network options
• Supports:
• Network Daughter Cards (NDC)
• PCIe expansion for NIC upgrades
• Suitable for ISP routing, BNG, firewall, and service nodes

🔸 Expansion

• PCIe Gen3 slots
• Supports:
• NICs
• RAID cards
• Accelerator cards (configuration dependent)

🔸 Power Efficiency

• Redundant hot-plug power supplies
• Designed for energy-efficient data center operation

🧠 Management & Monitoring

🔹 Dell iDRAC8 with Lifecycle Controller

• Remote server management (out-of-band)
• Power control, monitoring, firmware updates
• Hardware health and diagnostics
• Ideal for unmanned data centers and remote ISP POPs

🔐 Security & Reliability

• ECC memory support for data integrity
• Secure boot support
• Hardware-level monitoring and alerts
• Enterprise-grade reliability for 24×7 operation

🔌 Compatibility

🧩 Operating Systems

• Compatible with:
• VMware ESXi
• Windows Server
• Linux distributions (Ubuntu, CentOS, RHEL, Debian)
• Commonly used for:
• Virtualization clusters
• ISP service nodes
• Databases and application servers

🧩 Storage & Networking

• Compatible with:
• SAS / SATA HDDs and SSDs
• Enterprise RAID controllers
• 1G / 10G Ethernet adapters
• Works well with SAN and NAS environments
