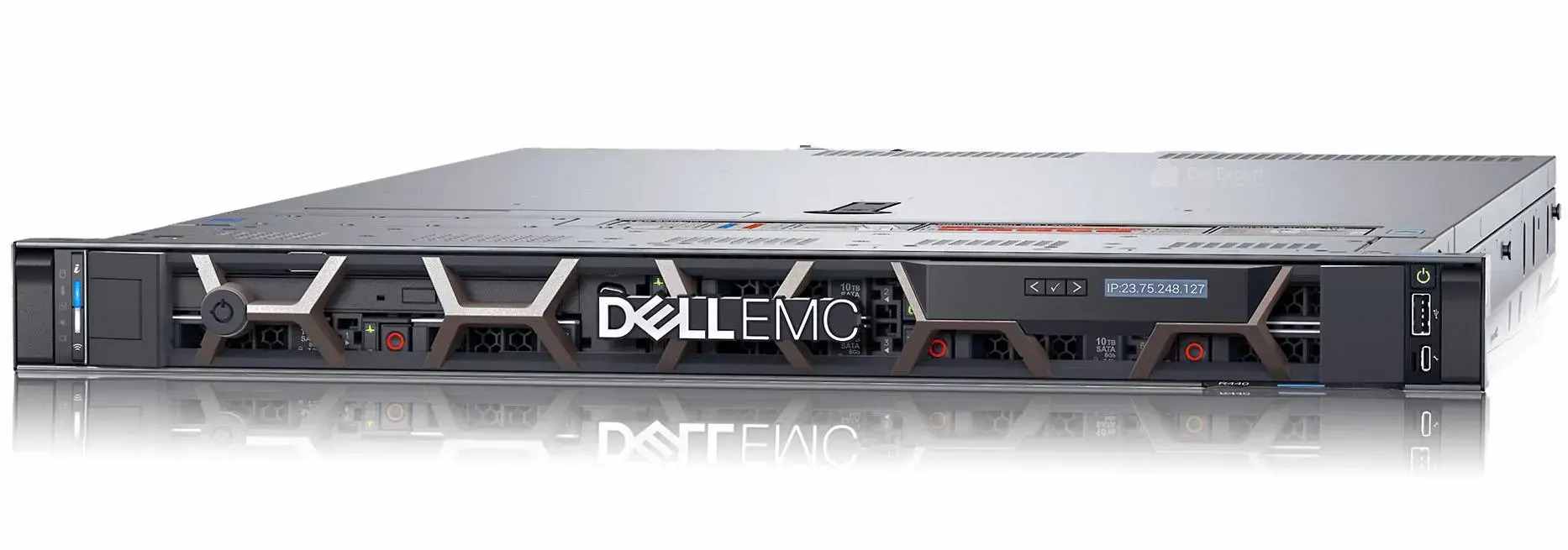

🖥 Dell PowerEdge R640 – Product Overview

The Dell PowerEdge R640 is a 1U, dual-socket enterprise rack server designed for high-performance computing, virtualization, software-defined storage, and mission-critical workloads. As the successor to the R630, it delivers higher core density, faster memory, improved storage flexibility, and enhanced security, making it ideal for modern data centers and ISP infrastructure.

⚙️ Key Specifications

🔹 Form Factor

• 1U rack-mount server
• Optimized for high-density data center deployments

🔹 Processor (CPU)

• Supports up to 2× Intel Xeon Scalable processors
• (Bronze, Silver, Gold, Platinum – 1st & 2nd Gen)
• High core counts for virtualization and parallel workloads

🔹 Memory (RAM)

• 24 DDR4 DIMM slots
• Supports DDR4 ECC RDIMM / LRDIMM
• Maximum capacity:
• Up to 3 TB DDR4 (with LRDIMM)
• High memory bandwidth for VM-heavy and database workloads

🔹 Storage Options

• Highly flexible storage configurations:
• Up to 10× 2.5″ NVMe / SAS / SATA
• Up to 4× 3.5″ SAS/SATA
• NVMe support for ultra-low latency applications
• RAID controller options:
• PERC H330, H730P, H740P
• Supports RAID 0, 1, 5, 6, 10, 50, 60 (controller dependent)

🚀 Performance & Core Features

🔸 High Compute Density

• Dual-socket design with scalable CPUs
• Excellent for consolidation and virtualization

🔸 Virtualization & Cloud Ready

• Optimized for:
• VMware ESXi
• Microsoft Hyper-V
• KVM / Proxmox
• Supports high VM density with large RAM capacity

🔸 NVMe & High-Speed Storage

• Native NVMe drive support
• Ideal for:
• Databases
• High-IOPS workloads
• Analytics and caching systems

🔸 Networking

• Flexible networking options:
• 1GbE / 10GbE / 25GbE
• Supports:
• Network Daughter Cards (NDC)
• PCIe NIC expansion
• Suitable for ISP BNG backend, firewall, CDN, and core services

🔸 Expansion

• PCIe Gen3 slots
• Supports NICs, RAID controllers, and accelerators (config-dependent)

🧠 Management & Automation

🔹 iDRAC9 with Lifecycle Controller

• Advanced remote server management
• Power control, monitoring, firmware updates
• Hardware health, logs, and diagnostics
• Ideal for remote data centers and ISP POPs

🔐 Security & Reliability

• Secure Boot and hardware root of trust
• TPM support
• ECC memory for data integrity
• Designed for 24×7 enterprise operation

🔌 Compatibility

🧩 Operating Systems

• Fully compatible with:
• VMware ESXi
• Windows Server
• Linux (Ubuntu, RHEL, CentOS, Debian, Rocky)
• Widely used in:
• Virtualization clusters
• Cloud platforms
• ISP service infrastructure

🧩 Storage & Networking

• Supports:
• NVMe, SAS, SATA SSDs & HDDs
• Enterprise RAID controllers
• High-speed Ethernet adapters (10G / 25G)
• Works seamlessly with SAN and NAS environments
